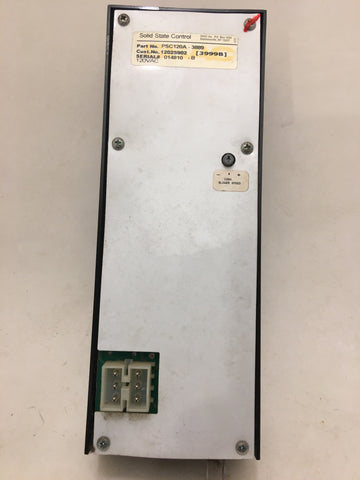

Control Board Whitfield Advantage IIT/ III/ Plus- Replaces 12055902- 13-1125

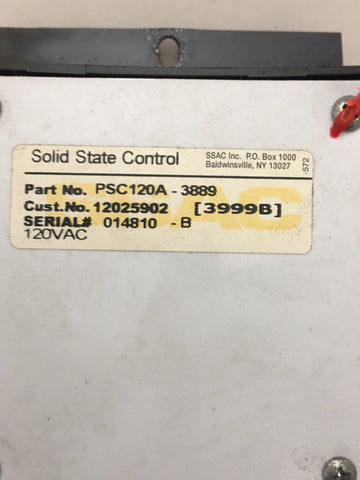

Circuit Board Control Panel for Whitfield Advantage IIT, III, and Plus pellet stoves. Replaces Whitfield part #’s: 12055902, 12025902, 12155900 and 12155900R,12025912.Dimension 3" wide x 8-3/4" High (Including mounting tabs) x 1-3/4" Deep
Bottom tab slides into bottom slot and top tab is secured in the center by one screw
If you are replacing an older rotary dial model, you will need to
make the following adjustments: Remove current sensing relay.
Remove the white and black wires to terminal #6 & #7 and replace
them with the wires going to the relay.
