Vulcan V-150 control panel issues

Feb 24, 2023 - 1:54 PM

  • The fan is the only function that is working right now. It's been cleaned and all parts have been checked. It has an Acutron II control panel. Do I need to replace the entire panel or is there another level of troubleshooting I should explore before spending $379?

    Thankyou!

    0
  • Hello

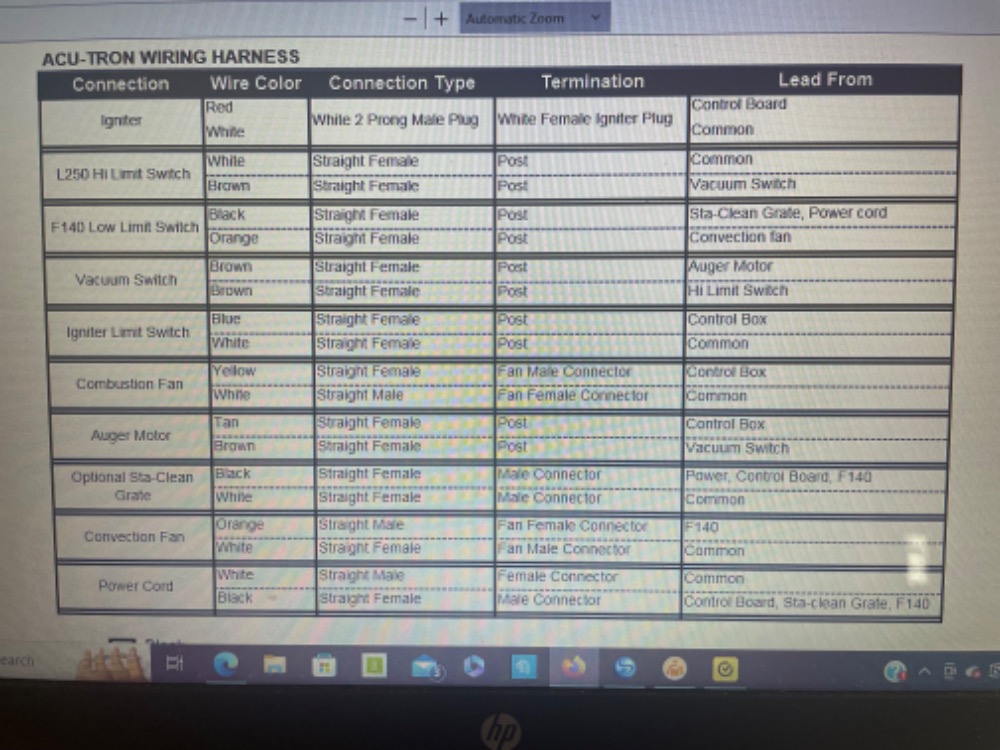

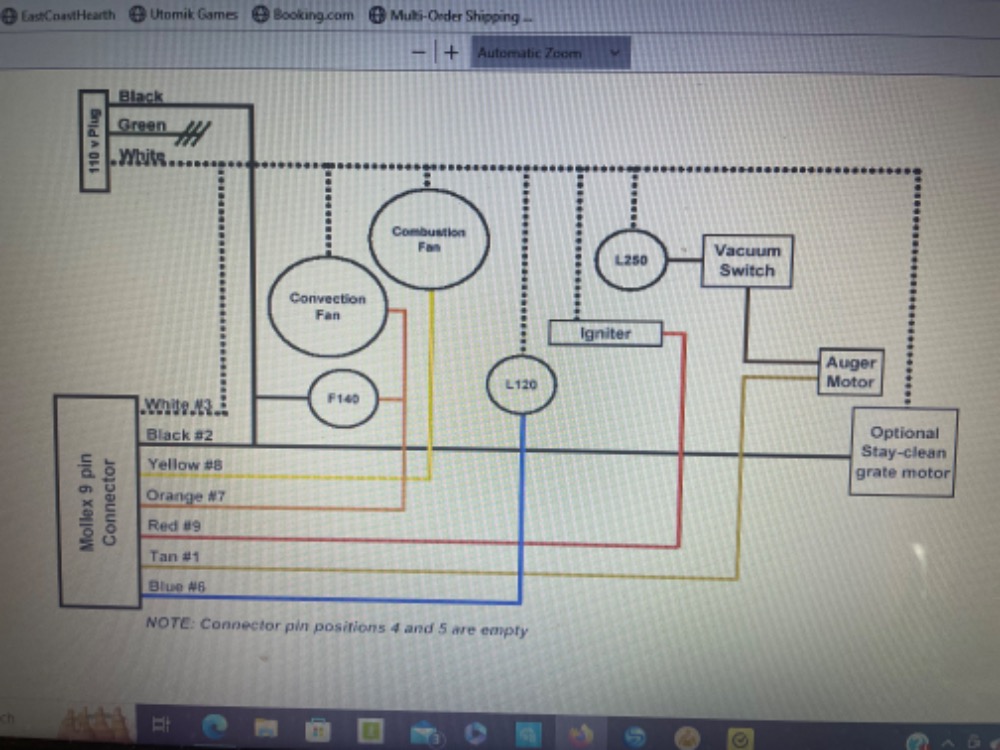

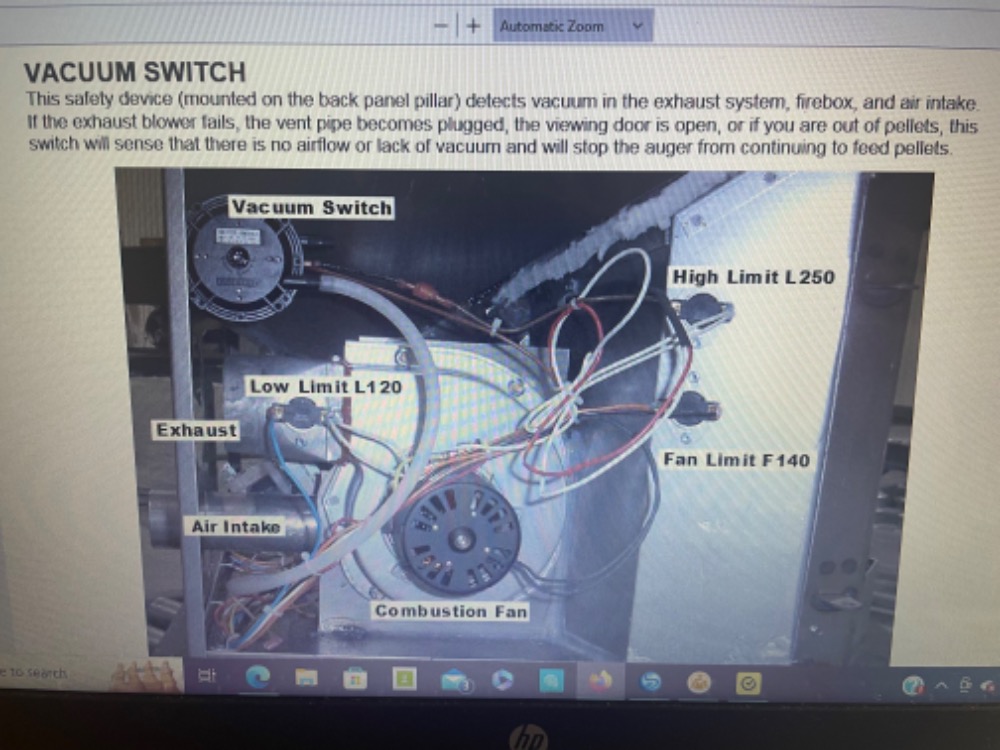

    Yes I would check all the motors with an AC cord and the safety snap discs & vacuum switch with a continuity tester. Here are some pics to use as a guide.




    0
