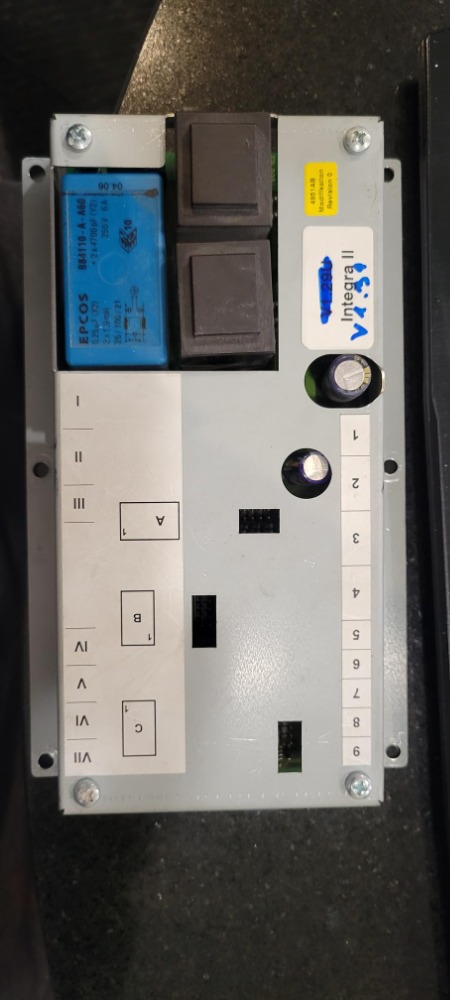

2006 Rika Austroflamm Integra II Circuit Board - 2006
The original owner changed the ignitor while the stove was off, but was plugged in.
Since then it has not worked, The user control board does not light up, the motherboard has 120 vac at term 1-2. Wiring looks good, all connections have been checked as per manual.
The high limit tests closed 1ohm

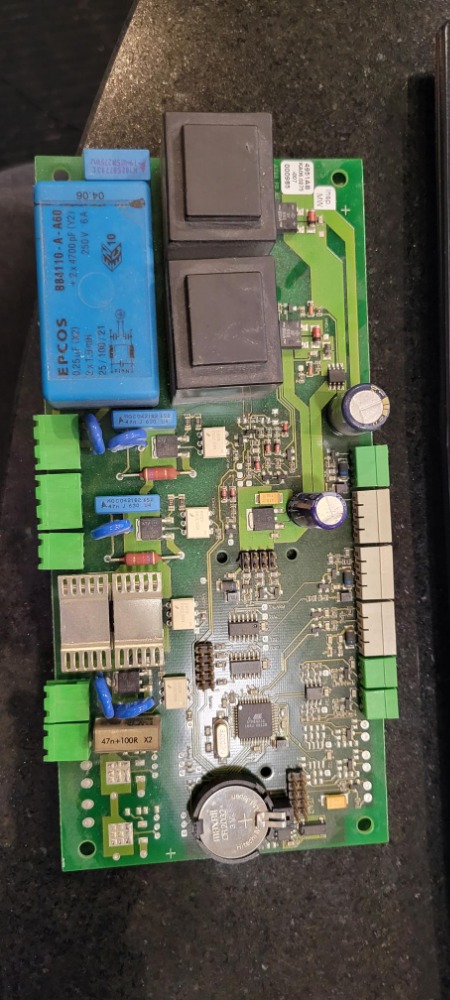

Looking at it closer I noticed that the white wire (neutral) on the 120 volt ac input is fused with a 3 amp fuse. To me applying a fuse to the neutral would not do any good to protect the board
I would like to know what testing can be performed before a new board is installed.
Regards
