Ashley 5660L gives E1 code after 30 seconds of turn on?

I checked the pressure hose and its not cracked.

Hello,

You can try bypassing the vacuum switch. It's an airflow issue so it could be a bad vacuum switch, worn door or ash pan gaskets, bad exhaust blower, or the venting could be clogged. The stove could need to be cleaned.

where is the vacuum switch and exhaust blower because I have cleaned the vent and the stove

2days 500.00 in parts and all I needed to do was push the fricking reset button on the high pressure sensor try this first before you go and spend alot of money I feel really smart now.... .

Thanks for the update

Anonymous:
2days 500.00 in parts and all I needed to do was push the reset button on the high pressure sensor try this first before you go and spend alot of money I feel really smart now.... .

Where is reset?

Where reset button

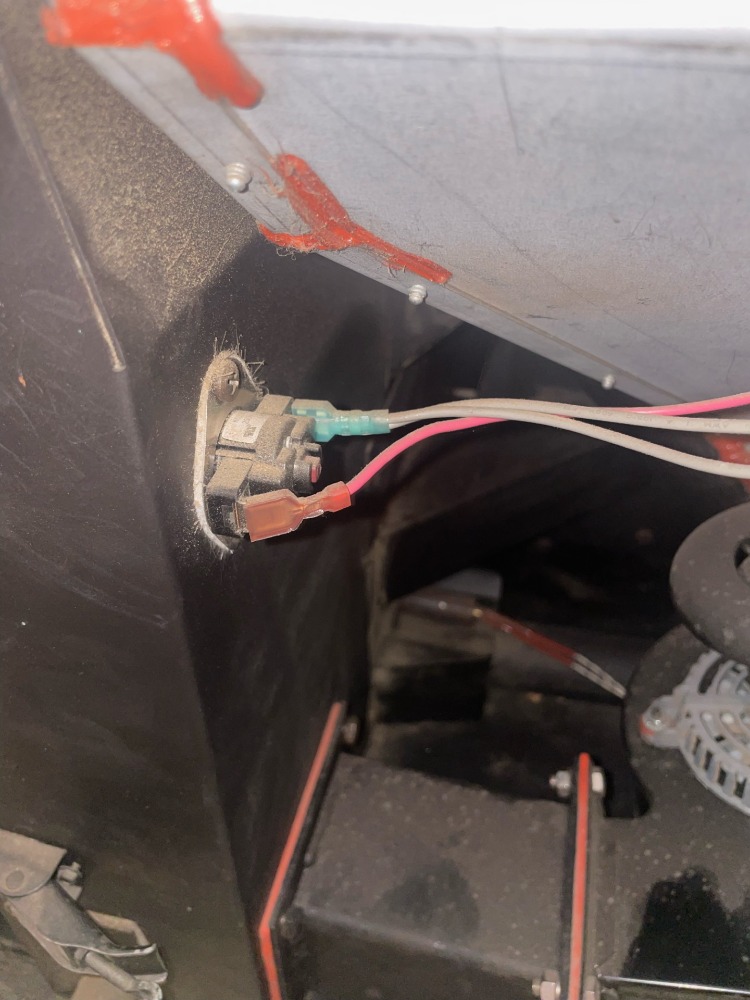

The reset button is the red button between the 2 wires on the high limit switch. if you open the right side it is on the back of the firewall. See pic below

YAY! Reset button worked today! Cleaned out all the pipes from fresh air In to Exhaust Out. Still E1 error. Checked all vacuum connections and the tube and all was fine. Read this Blog and found the Reset Button and Bamm! We're all running smoothly now! ThanX for the Great Tip!

You're welcome. Glad I could help!

Anonymous:
YAY! Reset button worked today! Cleaned out all the pipes from fresh air In to Exhaust Out. Still E1 error. Checked all vacuum connections and the tube and all was fine. Read this Blog and found the Reset Button and Bamm! We're all running smoothly now! ThanX for the Great Tip!

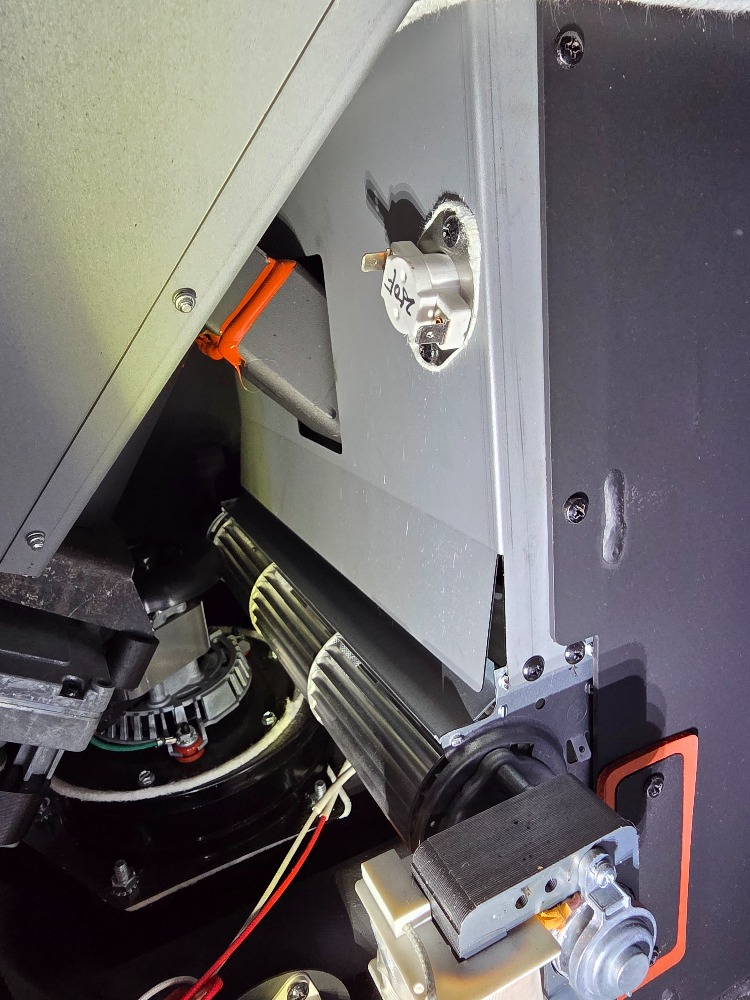

Can you send pics of where those two wires go out of the high limit switch? I just picked up an Ashley pellet stove used and error code one but opened the panel and there are no wires attached to the high limit switch, and there are no loose wires in the system. I believe it's in series with the auger but I don't see how it's wired in.

Anonymous:
Where is reset?

Hi, Can you send pics of where those two wires go out of the high limit switch? I just picked up an Ashley pellet stove used and error code E1. I opened the side panel and there are no wires attached to the high limit switch, and there are no loose wires in the system. I believe it's supposed to be wired in series with the auger but I don't see how it's wired in.

Hello
What is the Model # of the stove?
You can download the Owners Manual OnLine and see the wire diagram also.
