Englander Convection Blower PU-4C442- 44272

Englander Convection (Room Air) Blower PU-4C442. 140 CFM. 6 lbs. each. Dust screens can help extend the life of your distribution blower. 25-PDV before 2002 and other models below.

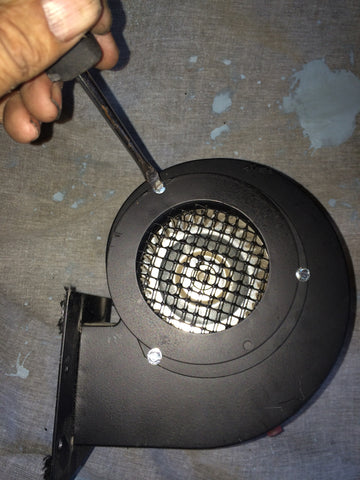

Click here to view a compatible dust screen. Dust screen installation - loosen 2 screws and remove the 3rd. Slip Screen under the 2 loosened screws and insert 3rd screw through hole and tighten. Screen should be checked and cleaned often especially if you have pets that shed.

We offer 10% off this Englander exhaust blower. Enter ENGLANDER102 at checkout to see savings.

The following is required for processing, please provide under "Add a note to your order" at checkout:

  • Stove's model (Example: 25-PDV)
  • Manufacturing date
  • Serial (Example: 003578) #
  • Phone #

These can be found on a metal plate on the back of your stove.

Fits the following Englander pellet stoves:

  • 25-PDVC
  • 55-SHP10
  • 55-SHP10L
  • American Standard
  • 25-PDV (Before 2002)
  • 25-PDVE (Before 2002)
  • 25-PI (Before 2002)
  • 55-SHP22 (Before 2002)
  • 55-SHP20 (Before 2002)
  • 55-TRP22 (Before 2002)
  • 55-TRP20 (Before 2002)
  • 55-SHP22L (Before 2002)
  • American Heritage (Before 2002)
  • 55-TRP10
  • 25-EP (Evolution Pellet)

  • 55-SHPEP

  • 55-SHPEPL

  • 55-TRPEP

  • 25-EPI

  • 55-SHPEPI

  • 55-SHPEPIL

  • 55-TRPEPI

Technical Specs
Outlet Shape Square
Wheel Dia. 3-13/16"
Wheel Width 1-7/8"
CFM @ 0.000-In. SP140
CFM @ 0.100-In. SP136
CFM @ 0.200-In. SP131
CFM @ 0.300-In. SP125
CFM @ 0.400-In. SP119
CFM @ 0.500-In. SP110
Voltage 115
Hz 60/50
Phase 1
Full Load Amps 1.16/1.02
RPM 3020
Bearing Type Sleeve
Motor Type Shaded Pole
Motor Enclosure Open Dripproof
Thermal Protection Auto
Lead Length 6"
Max. Ambient Temp. 104 Degrees F
Max. Inlet Temp. 104 Degrees F
Inlet Dia. 3-1/8"
Outlet Height 2-1/2"
Outlet Width 2-1/2"
Overall Height 7-7/32"
Overall Width 6-3/16"
Overall Depth 6-3/4"
Wheel Type Forward Curve
Mounting Position All Position
Housing Finish Baked Enamel
Housing Material Steel
Housing Color Black
Agency Compliance UL Component Recognized, CSA Certified
