1 RPM High Quality s901H Auger Motor/Agitator Motor (hole in shaft): U.S. Stove Replaces 80488 - CW from rear with 2 male clips

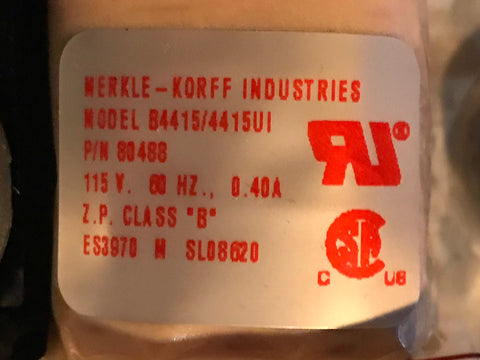

1 RPM High Quality s901H Auger Motor with needle bearings and hole in shaft for the U.S. Stove pellet stoves below. Replaces part # 80488. Shaft turns clockwise looking at the pellet stove from the rear.
115 Volts FLA/LRA 0.72 Amps 1 RPM
Continuous duty, Impedance Protected
1 in. x 3/8 in. shaft
Auger Drive motor:
- 5500
- 5500M
- 5500XL
- 5510
- 6041
- 6041HF
- 6041I
- 6100
- 6200
- 5502
- 5520
- APC1406
- APCI1406
Agitator motor:
- 6033
- 6035
- 6037
- 6039
- 6039HF
- 6039I
- 6100
- 6220
-
6500
- 6300
- 8500
The auger motor turns the auger, which transfers the pellets from the hopper to the burn pot. It feeds the fire and keeps the flame going. The auger motor must be replaced if it slows down or skips under a load (gears are stripped in the gear box when turning the auger.) See below for compatible models and specifications. In older stove models the auger may stop when the stove gets hot. This may mean the auger motor needs replacing. Please consult a professional in your area to determine that this is the issue.
A hitch (cotter) pin is need to attach the auger to the auger motor. Click here to view:
-----------------------------------------------------------------------------
115 Volts SP/Open .5 Amp 1 RPM
