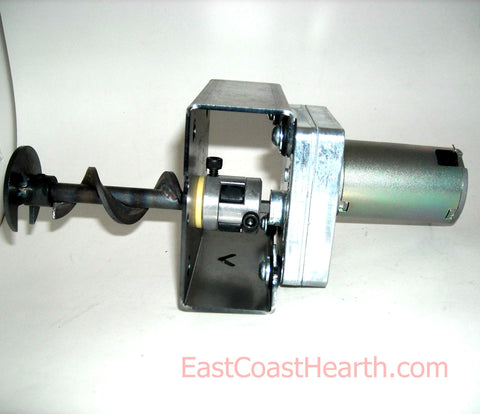

Auger Motor Assembly - Thelin Gnome 00-0005-0154 (2009 & older or 2016 & Newer) - Square opening on disc is the small feeder - 3/4 Inch
Auger Motor Assembly for Thelin Gnome pellet stoves. Thelin Part # 00-0005-0154. Stoves 2009 & older or 2016 & Newer. The -square opening on disc is the small feeder - 3/4"
These are the motor numbers on the motor tag.

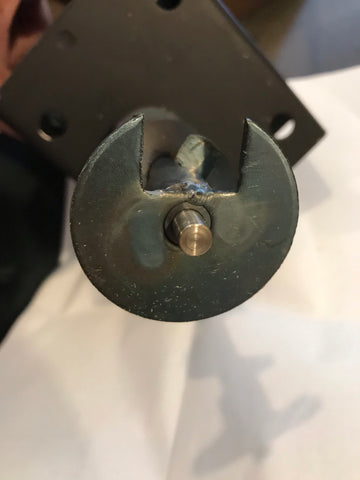

Please measure the square opening on the auger feed disc for the correct auger assembly.

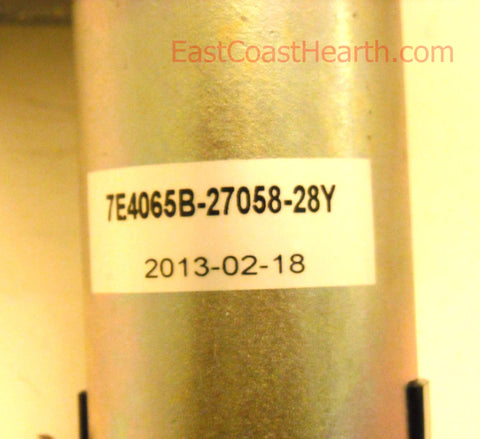

7E4065B-27058-28Y on motor tag or 00-0035-0018
Note: There different auger motors for different stove manufacturing dates. To assure you receive the correct auger motor, please provide the serial number and phone number (with area code) in the "Add a note to your order" box at checkout. Please use the contact us page if you have questions. Thank you.
Note: If you have the SPG 12VDC Auger Motor made in Korea. This 00-0005-0154 motor assembly is the correct motor for your stove. The Korean motors are no longer available. This motor assembly will plug right in, however it does stick out farther. Therefore in order to put the back of the stove on, a small round hole may have to be cut in the sheet metal so the back of the motor will stick out.
