Auger Motor - Thelin Parlour- Motor Only- 00-0035-0018 (2009 & older or 2016 & Newer)

Auger Motor ( Pellet Feed Motor ) for Thelin Parlour pellet stoves. Motor Only. Part 00-0035-0018. Replaces motor in assembly 00-0005-0005. Stoves 2009 & older or 2016 & Newer. Does not come with auger or auger disc feed system gaskets, or lovejoy hub. The square opening on the auger disc needed for Parlour is 7/8." Click here to purchase the auger. Click here to purchase the front auger feed system gasket. Click here to purchase the 7/8 auger disc. Click here to order the lovejoy hub.

These are the motor numbers on the motor tag.
Please measure the square opening on the auger feed disc for the correct auger assembly.
7E4065B-27058-28Y on motor tag or 00-0035-0018

Note: There different auger motors for different stove manufacturing dates. To assure you receive the correct auger motor, please provide the serial number and phone number (with area code) in the "Add a note to your order" box at checkout. Please use the contact us page if you have questions. Thank you.

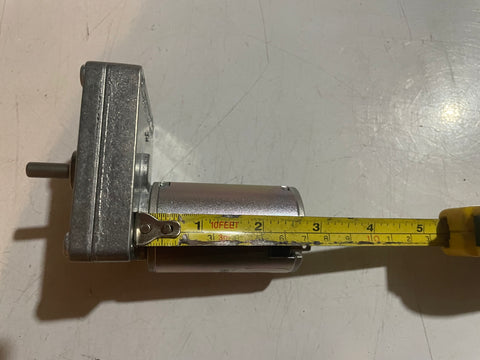

Note: 1 - Measure the distance of your current motor from the end of the motor to the gearbox. This distance should be 2-3/4" See last pic. If your motor is much shorter 2-1/4" then it will not fit your existing bracket due to the shaft offset so you need to purchase the entire assembly with the multi-products bracket, Also cut a hole in the back panel of your stove for the motor to fit. Parlour 3000 - 00-0005-0005 or Gnome 00-0005-0154

Note: 2 - If you have the SPG 12VDC Auger Motor made in Korea. This 00-0005-0154 motor assembly is the correct motor for your stove. The Korean motors are no longer available. This motor assembly will plug right in, however it does stick out farther. Therefore in order to put the back of the stove on, a small round hole may have to be cut in the sheet metal so the back of the motor will stick out.
