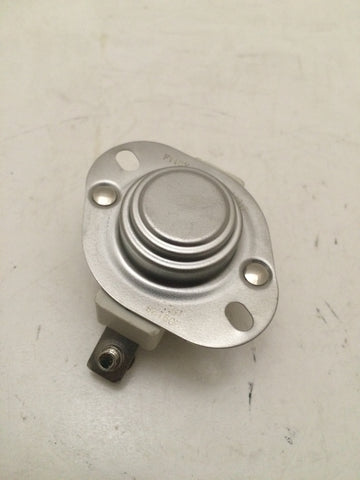

Ceramic Low Limit (Mounts on Exhaust housing) Switch for US Stove 5660 & Ashley Bay Front - Hi Quality Long Lasting - 052
Replacement Low Limit (Exhaust) Switch (140F) for US Stove 5660 / Ashley 5660 Bay Front pellet stoves and inserts. It is called a snap switch or low limit disc. Replaces US Stove Part # 80599 This is high quality ceramic disc for POF - Proof of fire and turns on the convection (Room) blower when stove warms up.
If your Ashley Convection or Room Blower is going on and off then this snap disc will fix the problem. Also this snap disc does not have a gasket. It senses the heat on the exhaust housing to switch the convection blower on and a gasket will interfere with it's operation.

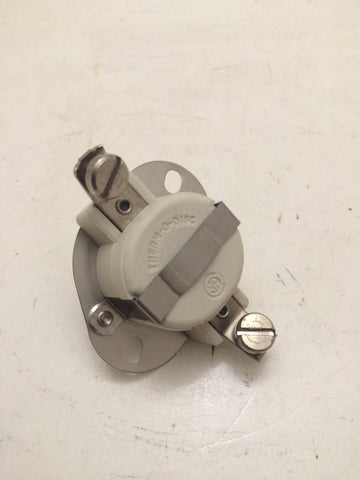

This switch has screw terminals for easy connection to the existing wires.
This normally OPEN switch is rated to close at 140 degrees F.
It resets to OPEN when temperatures drop below 110 degrees F,
