Circuit Board (Panel) 80778 - U.S. Stove King 5510/ 5500M/ 5500XLT/ 5220 replaces 80558 #USS80778#

OEM Circuit Board (Panel) 80778 for U.S. Stove King, Ashley, and Golden Eagle pellet stoves. Replaces part # 80558 and 80487.

Fits the following U.S. Stove models:

  • PP60
  • 5510
  • 5500
  • 5500M
  • 5500XLT
  • 5220 (Golden Eagle)
  • 5502
  • 5502M
  • KP60
  • KP130

Fits the following Ashley Pellet Stoves

  • AP130
  • AP60

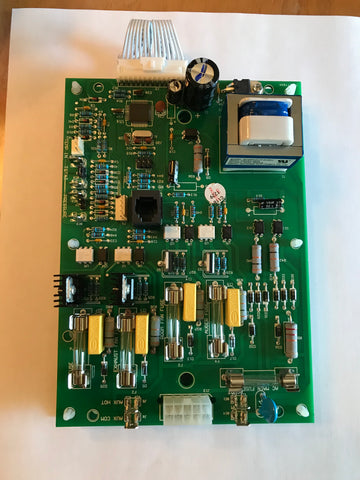

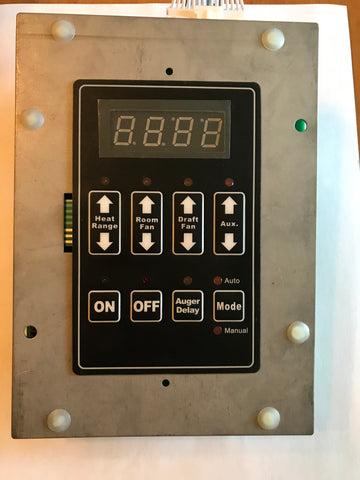

Assembly Circuit Board (4 -Digit) IR Compatible.

Note: If replacing the old A B C board then take the igniter, auger motor, etc off the module board, and put it on this new board

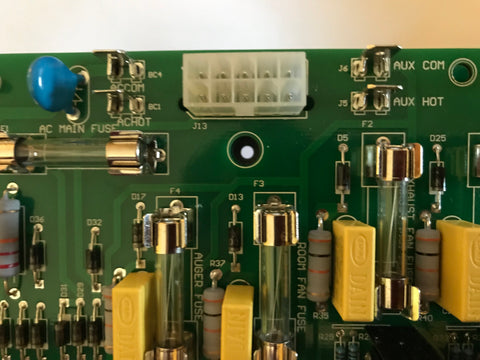

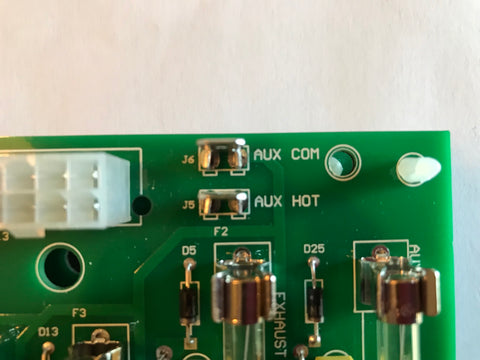

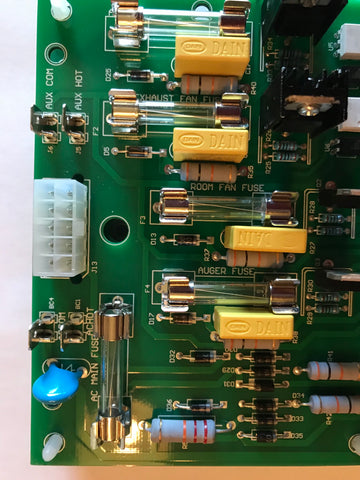

Note: Igniter plugs into tabs on right side of molex connector labeled J5 & J6
See last picture.
