Englander 4 RPM Heavy Duty Auger Motor for 10-CDV Corn Stove - Replaces CU-047044- CCW from rear - 2 Male Clips S904

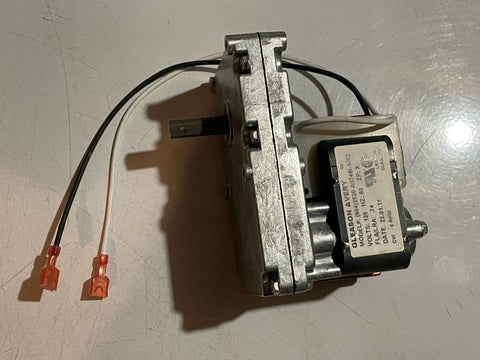

This High Quality 4 RPM auger motor (S904) for Englander top feeder pellet stoves - CW from rear - 2 Male Clips. See below for specific pellet stove models. Replaces part # CU-047044. This motor is the highest quality gearbox motor made by Gleason-Avery with stall torque at 180 in lbs truly the workhorse of the line to help prevent auger jams compared to other common motors that are approx. 155 in lbs. Uses needle bearings. Longer lasting than ball bearings.
The auger motor turns the auger, which transfers the pellets from the hopper to the burn pot. It feeds the fire and keeps the flame going. The auger motor must be replaced if it slows down or skips under a load (gears are stripped in the gear box when turning the auger.)
In older stove models the auger may stop when the stove gets hot. This may mean the auger motor needs replacing. Please consult a professional in your area to determine that this is the issue.
