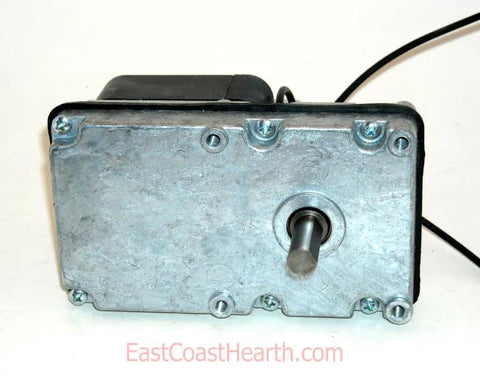

Pacific Energy Warmland PS45 / True North 1 RPM Mixer Motor- Replaces c: Extended Life 901

1 RPM Mixer/ Fuel Stirrer Motor for PE Pacific Energy PS45 Warmland, Warmland Classic, and True North pellet stoves. Replaces part # 5001.003/ 80000892. Gleason-Avery 1 RPM High Quality Mixer Motor GA Part # 901 with ball bearings for extended life. This motor is the highest quality gearbox motor made by Gleason-Avery with stall torque at 200 in lbs truly the workhorse of the line to help the mixer work without skipping or jamming compared to other common motors that are approx. 155 in lbs. Rugged, trouble-free. Our most popular gearbox motor based upon superior performance.

Comes set to counter clockwise rotation looking from rear of stove.

The auger motor turns the auger, which transfers the pellets from the hopper to the burn pot. It feeds the fire and keeps the flame going. The auger motor must be replaced if it slows down or skips under a load (gears are stripped in the gear box when turning.) See below for compatible models and specifications.

115 Volts SP/Open .5 Amp 1 RPM

Continuous duty, Impedance Protected
CCW rotation, viewing from rear
3 in. body Skeleton frame 1 in. x 3/8 in. shaft
