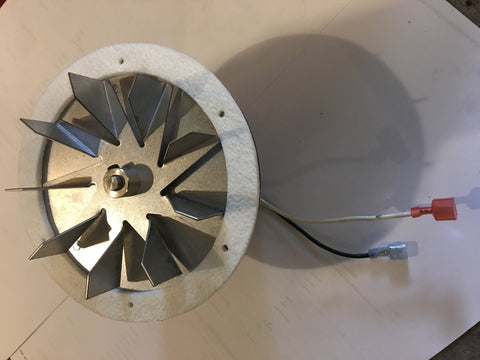

Quick change Exhaust Blower- Pelpro/ Glow Boy/ Cheap Charlie (Combustion/Draft)- Only stoves with 6 bolt mounting hub - 1 male (white) & 1 female clip
This upgraded Fasco combustion fan / exhaust (draft) blower fits Pelpro and Glow Boy pellet stoves. Replaces part # . Blower comes with quick change housing for easy motor changes,

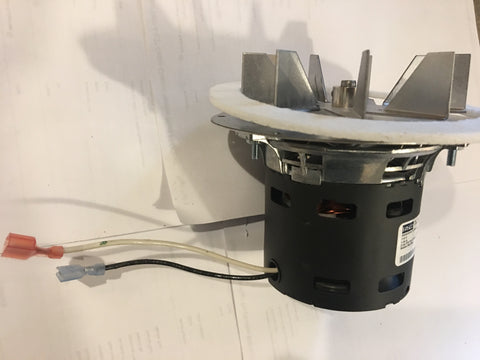

Comes with blower motor and high temp white gasket. Only for these stoves that have been updated with the quick change 6 bolt mounting hub.
- Home Heater
- Home Heater 120 (HHPP2BD)
- Home Heater 300 (HHPP32BD)
- Shop Heater
- Shop Heater 120
- Shop Heater 300
- FBG Step Top
- FGB Bay View
- IGB Bay View
- Classic Insert
- Standard Freestanding PP60
- Standard Freestanding FPP2BD
- Step Top FPPST4BD
- Bay Window Freestanding FPPBW2GD
- Bay Window Insert IPPBW2GD
- Shepard Bay
- CC Edison Jr.(HCJ)
- CC Edison Sr. (HCS)
- CC Franklin300 (HCF 300)
- CC Franklin120 (HCF 120)
- Also fits many Vulacan Wood Pellet Stoves
The exhaust blower blows ash up the venting and draws outside air into the firebox and across the heat exchange. It is also known as a centrifugal blower.
The wire connections needed are one male spade clip and one female spade clip that will plug into the existing wire harness, or just splice the wires in with a wire connector.
Instructions to Install Pelpro quick change Exhaust Blower
1. Remove old blower -
1a. Disconnect 2 Blower Motor Wires.
1d. Remove 6 mounting hub nuts. –
1e. Remove exhaust blower and scrape off old white gasket.
2. Install new exhaust exhaust blower.
2a. Install new exhaust blower using 6 nuts with new white high temp gasket. –
3. Connect wires to new exhaust blower and snap disc.
3a. Connect 2 Blower Motor Wires usually white and black. (Colors may vary) --
