U.S. Stove 5660 Firebrick Center Piece - 88163 #USS88163#

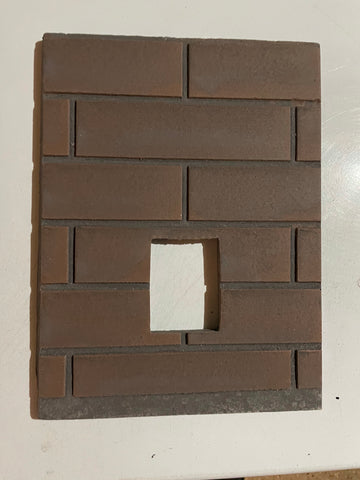

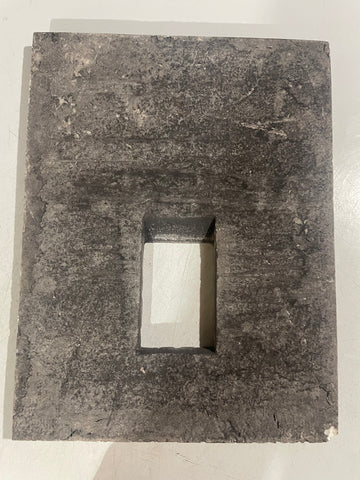

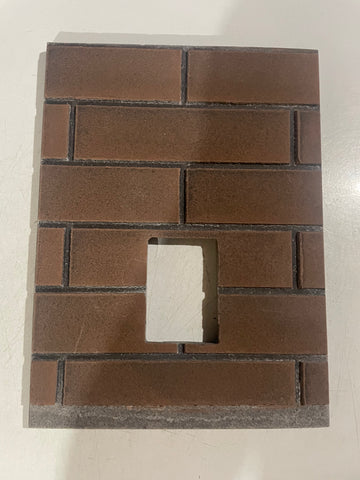

US Stove 5660 Fire brick Center Panel Piece for U.S. Stove 5660 bay view pellet stoves. Part # 88163.

To install: Remove the side panels by removing the phillip head screws at the top to remove the hold down clip. Remove the side panels then remove the center panel. The center panel must be installed first by placing the bottom edge under the pellet drop chute and tilting the panel until the top edge is in place.

Firebrick Dimensions:
Outer
12-1/2" x 9-1/2" x 5/8"
Opening
3-1/4" 2-1/4" x 5/8"
Top Back Bevel
1" High
