Upgraded 140 CFM Convection Blower with Convection Blower Extender - US Stove 5660 & Ashley 5660 Bay Front with 2 male clips (Non OEM)
Upgraded 140 CFM Convection Blower with Convection Blower Extender ( snorkel ) for US Stove 5660 & Ashley Bay Front pellet stoves. Replaces US Stove 80622 not included.

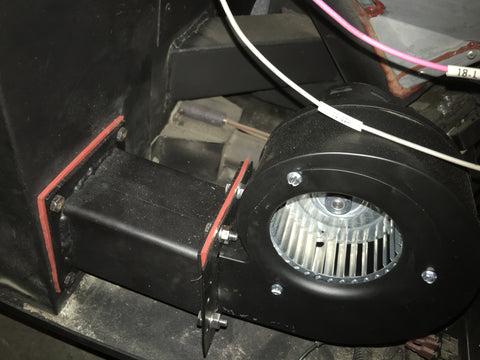

This heavy duty extender plenum puts the blower in the back of the stove to keep the motor cooler. It has 2 sets of blower mounting holes for side mounted blowers for much longer life.
The 5/16" blower mounting holes on the slant side mounting flange will take 1/4"x20 - 3/4" long course thread bolts, lock washers and nuts. Serrated nuts can be used with no lock washers.
The Extender and side mounted blower lasts much longer than the original with motor on top of the squirrel cage. The weight of the motor wears down the squirrel cage and it gets unbalanced. This side mounted version lasts longer. Blower comes mounted on plenum with both re-usable silicone gaskets. One gasket on blower and one to connect to stove.
Note: If you have the older version of the 5660 with the control panel mounted on the right side, then this blower will not fit in the stove because the right door will not close completely.
