6100 6200 Circuit Board (Control Panel) US Stove American Harvest - 80502 #USS80502#

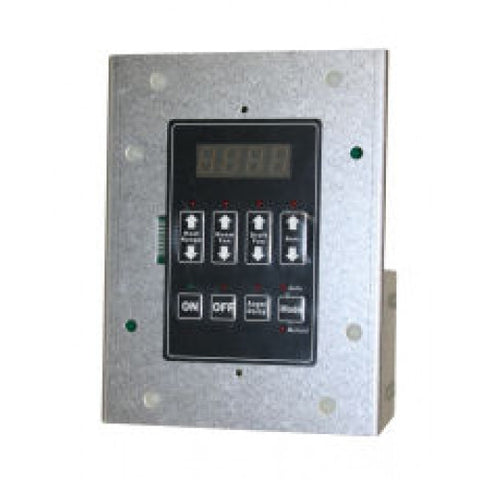

Replacement circuit board (Control Panel) for U.S Stove American Harvest pellet stoves. Part number 80502. For U.S. Stove units: 6100, 6220.

This is a special order item. Please contact us for details.

Note: If you have the 6300 Furnace, then you need the 80554 circuit board.

Click here for 80554 circuit card.

Glass Fuse Assignment from left to right

Igniter – AGC 5 Amp – Fast Blow

Agitator – MDL 1 Amp – Slow Blow – Time Delay

Exhaust - AGC 5 Amp – Fast Blow

Room Fan – AGC 5 Amp – Fast Blow

Auger Fuse – MDL 1 Amp – Slow Blow – Time Delay

Main Glass Fuse Bottom Right

Main Fuse - AGC 7-1/2 Amp Fast Blow
