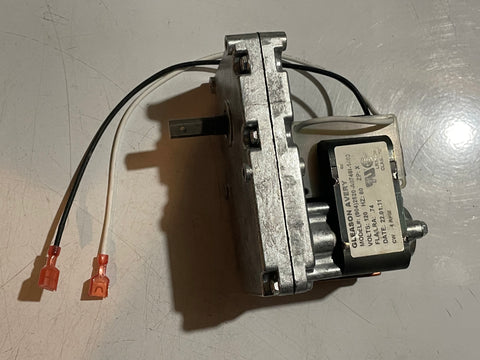

4 RPM Auger Motor- Harman 904 CCW from rear - 2 Female Clips

4 RPM auger motor (#904) for Harman pellet stove models manufactured after 2009. Replaces part # 32060906. See below for compatible Harman models. This motor is the highest quality gearbox motor made by Gleason-Avery with stall torque at 160 in lbs truly the workhorse of the line to help prevent auger jams compared to other common motors that are approx. 140 in lbs. Uses needle bearings. Longer lasting than ball bearings. This rugged motor is our most popular gearbox motor based upon superior performance. Gleason-Avery auger motors are the Harman standard used in all their pellet stoves. It has as a counterclockwise rotation on the shaft viewed from the rear. This auger motor comes with two female clips. It has a mounting hole drilled in the shaft and has been engineered for ultra quiet operation. See below for specific models. The auger motor must be replaced if it slows down or skips under a load (gears are stripped in the gear box when turning the auger.) In older stove models the auger may stop when the stove gets hot. This may mean the auger motor needs replacing. Please consult a professional in your area to determine that this is the issue.

Fits Harman Pellet Stoves:

  • P35i Pellet Insert
  • Pellet Pro 38 Plus (P38+)
  • Pellet Pro II (PP2)
  • PC45
  • P43
  • P61
  • P61A
  • P68 (Models, After serial # 008280309)
  • Accentra Insert
  • Invincible Insert
  • Invincible FS
  • Invincible T
  • The motors below run CW when looking at back of motor
  • For models 2010 and later use the Outboard motor
  • (Motor and shaft on same side of Gearbox)

  • Accentra FS (Models After 2009)

  • XXV (Models After 2009)

Fits Harman Coal Stoves:

  • DVC-500
  • Super Mag Stoker

Same as Harman part # 3-20-60906.
