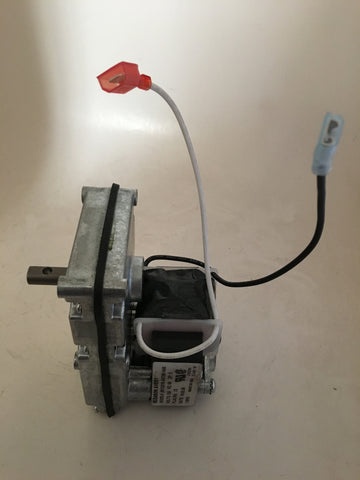

1 RPM High Quality 901H Auger Motor (hole in shaft): Replaces Breckwell C-E-017 - CCW from rear with 1 male (white) 1 female clip (2003 & newer) (Non OEM) #GLAs901H#

This 1 RPM high quality 901H auger motor fits Breckwell Pellet Stoves newer than 2003 as well as some old P22 and P23 stoves:

Breckwell 1 RPM clockwise rotation part # C-E-017. Fits models P22, P23, P24, P2000, P2700, Big E and Classic Cast Model.



115 Volts  FLA/LRA 0.72 Amps  1 RPM
Continuous duty, Impedance Protected

1 in. x 3/8 in. shaft


 Compatible models:

  • P22 Maverick - All Units
  • P22I Maverick Insert - All Units
  • P23 Sonora - Serial # 7166 to Present, and Units BEFORE serial # 6332
  • P23I Sonora Insert - Serial # 2243 to Present, and Units BEFORE serial # 1916
  • P24 Blazer - Serial # 53664 to Present
  • P24I Blazer Insert - Serial # 53795 to Present
  • P1000 Big E - All Units
  • P2000 Tahoe - Serial # 11780 - Present
  • P2000I Tahoe Insert - Serial # 22208 - Present
  • P2700 Mojave - Serial # 8445 - Present
  • P4000 Classic Cast - All Units

    Serial numbers are approximate. Please contact us with any questions.
  • Most older Breckwell models take a 4 RPM auger motor- click here to view

The auger motor turns the auger, which transfers the pellets from the hopper to the burn pot. It feeds the fire and keeps the flame going. The auger motor must be replaced if it slows down or skips under a load (gears are stripped in the gear box when turning the auger.) See below for compatible models and specifications. In older stove models the auger may stop when the stove gets hot. This may mean the auger motor needs replacing. Please consult a professional in your area to determine that this is the issue.

We also sell a Breckwell Value Update Kit including a Control Board, Auger, and Auger Motor

Breckwell Value Upgrade Kit

A hitch (cotter) pin is need to attach the auger to the auger motor. Click here to view:

Hitch Pin

-----------------------------------------------------------------------------

115 Volts  SP/Open  .5 Amp  1 RPM

Continuous duty, Impedance Protected
Counter clockwise rotation, viewing from rear
3 in. body  Skeleton frame  1 in. x 3/8 in. shaft

These Motors are set up for counter clockwise rotation (most pellet stoves use this setting) looking from rear. The rotation can be reversed if needed.
