Gasket - Ardisam Exhaust Motor White High Temp Gasket kit 18522 for Combustion Blower- Includes 720295 and 18267

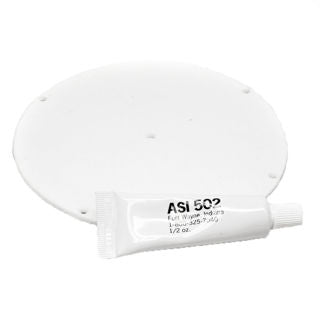

Ardisam High Temp Gasket Kit for Ardisam Castle and Serenity stove models. Temperature rated at 1,000 Degrees F. OEM Part # 18522. Includes Gasket 720295 and High Temp Gasket Seal 18267.

This White High Temp Gasket kit fits the following Ardisam pellet stove exhaust blowers:

  • Castle HPS09
  • Castle HPS10
  • Castle HPS10IC
  • Serenity

To Install just perform the following steps.

1. Turn the stove off, let it cool down and unplug the cord from the wall
2. Remove the left side of the stove, unclip the 2 exhuast blower wires and remove the 4 screws holding the blower into the housing.
3. Remove the impeller blade & nut by turning the nut clockwise

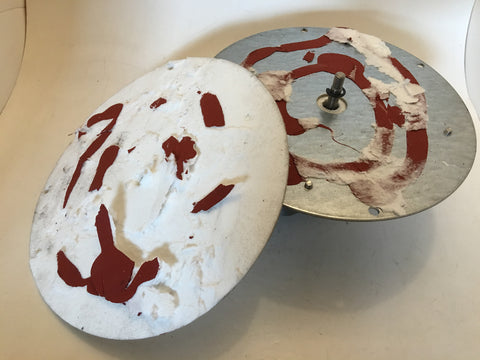

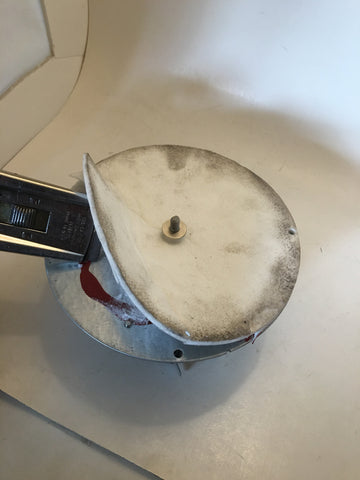

4. Using a razor blade knife scrape off the old white gasket and the glue under it.
5. Using high temperature Silicone (RTV) apply some to the blower mounting hub and the back of the new gasket, then push the gasket over the blower shaft.
6. Install the Impleller blade and nut by turning the nut counter clockwise
7. Using an awl or sharp pointed object punch 4 holes into the new gasket for the mounting bolts.
8. Install mounting bolts and clip wires back on and plug stove back into wall outlet. Blower is AC so wires can go on either clip.
See pics >>
