Englander Pellet Stove Ignitor- PU-CHA: 2 female clips

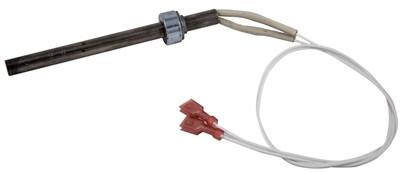

This 300 watt 4" long 3/8 inch diameter igniter with 2 female quick disconnect clips on long wires will fit Englander 25-PDVC and most other Englander model wood pellet stoves. Part # PU-CHA. See models listed below. OEM Englander part.
The igniter must be aligned by looking at it from the front of the stove. The ignitor must be in the center of the tube and recessed approx. 1/4" from the front edge of the tube.
Englander Igniter fits these models:
25-PDVC / 55-SHP10 / 55-SHP10L / 55TRP10
25-PDV / 25-PDVE / 25-PDVP / 55-SHP15 / 55-SHP22 / 55-SHP22L / 55-TRP15 / 55-TRP22 / US 25-5670
25-PI / 55-SHP20 / 55-TRP20
25-EP / 55-SHPEP / 55SHPEPL / 55-TRPEP (Evolution Pellet)
25-EPI / 55-SHPEPI / 55SHPEPIL / 55-TRPEPI (Evolution Pellet Insert)
25-IP / 25-IPM / 25-IPS / 55-SHPIP / 55-SHPIPL / 55-SHPIPM / 55-SHPIPS / 55-TRPIP / 55-TRPIPM / 55-TRPIPS (Imperial Pellet)
25-PAH / 55-SHPAH / 55-SHPAHL / 55-TRPAH (Pellet Auxiliary Heater)
NOTE: This is also the igniter for pellet grills with PG100 in the model number.
See Picture on Right with warranty card.
