2 RPM Heavy Duty Auger Motor - Magnum Baby CountrySide / Winchester / T40 AC CW from rear - 2 Female Clips s902

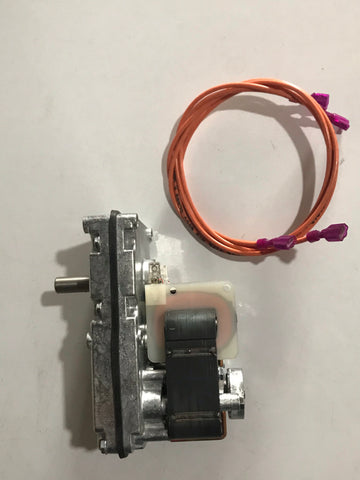

High Quality 2 RPM (S902) auger for Magnum Baby CountrySide/Winchester/T40 AC pellet stoves. This motor is the highest quality gearbox motor made by Gleason-Avery with stall torque at 180 in lbs truly the workhorse of the line to help prevent auger jams compared to other common motors that are approx. 155 in lbs. Replaces part # RP2022 or RP-2022. Uses needle bearings. Longer lasting than ball bearings. Clockwise from rear. 2 Female Clips. See below for specific pellet stove models. The auger motor turns the auger, which transfers the pellets from the hopper to the burn pot. It feeds the fire and keeps the flame going.
The auger motor must be replaced if it slows down or skips under a load (gears are stripped in the gear box when turning the auger.)
In older stove models the auger may stop when the stove gets hot. This may mean the auger motor needs replacing. Please consult a professional in your area to determine that this is the issue. RP 2022
Fits the following Magnum pellet stoves:
- MagnuM Baby Countryside AC
- MagnuM T40 Fireplace Insert AC
- MagnuM T40 Queen Ann Leg Unit AC
- MagnuM Winchester AC
- MagnuM Winchester AC Fireplace Insert
