Upgraded 230 CFM Convection Blower with Convection Blower Extender - Hudson River West Point or Saranac with 2 male clips
Upgraded 230 CFM Convection Blower with Convection Blower Extender ( Snorkel ) for Hudson River West Point or Saranac pellet stoves. Replaces Convection Blower part # HR110s or 80622.

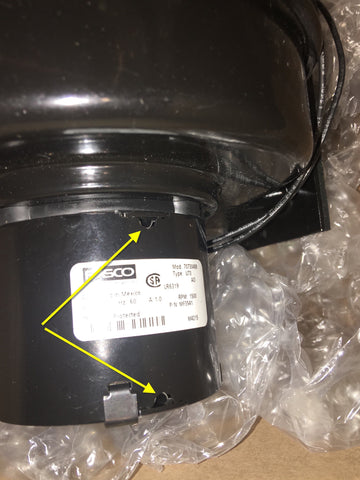

This blower pushes out more heat and you can feel it father away but it is gentle and quieter air flow, more volume less pressure. It also has lubrication holes for Anderol 465 light synthetic bearing oil or Marvel Mystery oil. You may order the oil here

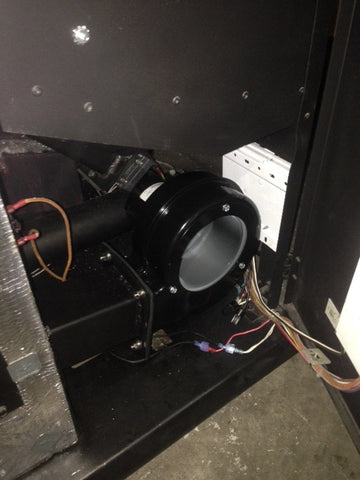

This heavy duty extender plenum puts the blower in the back of the stove to keep the motor cooler. It has 2 sets of blower mounting holes for side mounted blowers for much longer life.
The 5/16" blower mounting holes on the slant side mounting flange will take 1/4"x20 - 3/4" long course thread bolts, lock washers and nuts. Serrated nuts can be used with no lock washers
The Extender and side mounted blower lasts much longer than the original with motor on top of the squirrel cage. The weight of the motor wears down the squirrel cage and it gets unbalanced. This side mounted version lasts longer. Blower comes mounted on plenum with both re-usable silicone gaskets. One gasket on blower and one to connect to stove.
